Powersports

Escape to the outdoors with exceptional ride and traction. With a broad range of utility and performance ATV/UTV tires, we prove that terrain is no match for an aggressively, smooth ride.

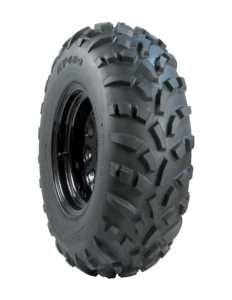

AT489

Download Catalog Find a Retailer

Best Used For: All Purpose,All Terrain,Intermediate Surfaces,SxS,Soft Surfaces,UTV

The AT489 tire is a popular original equipment replacement tire and strikes a great balance between lightweight and puncture resistance. It has outstanding grip on loose terrain without giving up the comfortable ride on hard-packed surfaces, soft surfaces and mud.

Product Highlights:

Puncture resistant tread compounds
Tread designed for aggressive yet smooth control
Soft to intermediate surfaces/mud

Download Warranty

Technical Specifications

Standard
Metric

Part Number Sort Order	SKU	Size	Ply	Mounted Diameter (INCH)	Mounted Width (INCH)	Rated Load (POUND)	PSI	Tread Depth	Weight (POUND)
5	5793A6	24x12.00-10NHS	4	24	12	1050	20	19 /32	23
1	5793N1	22x9.50-10NHS	4	22	9.5	600	14	19 /32	15.8
9	5793N9	24x10.50-10NHS	4	24	10.5	715	14	19 /32	20
6	5793P2	24x9.50-10	4	24.2	9.6	855	22	19 /32	17.8
4	589304	AT23x8-11	3_star	23.5	7.5	290	7	19 /32	14.1
7	589305	AT24X11-10	3_star	24	10	440	7	19 /32	17
13	589308	AT25x11-10	3_star	25.7	10.5	455	7	19 /32	20.9
5	589327	AT23x10-10	3_star	23.4	9.5	375	7	19 /32	18
9	589328	AT24x10-11	3_star	24.6	9.6	395	7	19 /32	18
15	589329	AT23x8-12	3_star	23.1	7.4	280	7	19 /32	14
16	589330	AT23X10-12	3_star	23	9	365	7	19 /32	17
12	589332	AT24x8-11	3_star	24.2	8.6	320	7	19 /32	18
23	589336	AT26x10-12	2_star	25.7	9.8	385	5	19 /32	19
18	589337	AT24x8-12	3_star	24.2	8	310	7	19 /32	14
19	589342	AT24x9-12	2_star	23.8	8.9		5	19 /32	17
12	589344	AT24x11-12	3_star	24	10.9	430	7	19 /32	20.3
22	589359	25x8.00-12NHS	4	25	8		22	19 /32	15
11	6P0818	24x9.00-12 NHS	4	24.3	8.5	565	12	19 /32	16.8
8	5893A9	AT24x9-11	3_star	24	8.9	365	7	19 /32	17.2
10	6P0819	24x8.00-12	4	24	7.5	505	12	19 /32	14
2	5893H5	22x11.00-10NHS	4	22.8	10.2	600	12	19 /32	16
3	5893M0	AT23x7-10	2_star	23	7	240	5	19 /32	11.6
2	5893V0	AT22x11-10	2_star	22	11.1		5	19 /32	16
2	5370461	AT22x10-10	3_star	21.7	9.9	355	7	19 /32	18
26	560414	25x11.00-12NHS	4	25.5	10.5		22	19 /32	22
24	560416	25x10.00-12NHS	4	25.8	9.1		24	19 /32	20
20	6P07681	25x8.00-12 NHS	4	25.3	7.7	495	10	19 /32	15
21	6P07691	25x10.00-12 NHS	4	25.3	9.4	600	10	19 /32	20
22	6P07701	25x11.00-12 NHS	4	25.4	10.5	1050	22	19 /32	21
14	589306	25x8.00-12NHS	4	25.1	7.5	495	10	19 /32	14.1
15	589335	25x10.00-12NHS	4	25.3	9	600	10	19 /32	17
16	589351	25x11.00-12NHS	4	25.4	10.5	1050	22	19 /32	20.1

Part Number Sort Order	SKU	Size	Ply	Mounted Load Diameter (MILLIMETER)	Mounted Width (MILLIMETER)	Rated Load (KILOGRAM)	PSI	Tread Depth	Weight (KILOGRAM)
5	5793A6	24x12.00-10NHS	4	609.6	304.8	476	20	15.1	10.4
1	5793N1	22x9.50-10NHS	4	558.8	241.3	272	14	15.1	7.2
9	5793N9	24x10.50-10NHS	4	609.6	266.7	324	14	15.1	9
6	5793P2	24x9.50-10	4	614.7	243.8	388	22	15.1	8.1
4	589304	AT23x8-11	3_star	596.9	190.5	132	7	15.1	6.4
7	589305	AT24X11-10	3_star	609.6	254	200	7	15.1	7.7
13	589308	AT25x11-10	3_star	652.8	266.7	206	7	15.1	9.5
5	589327	AT23x10-10	3_star	594.4	241.3	170	7	15.1	8
9	589328	AT24x10-11	3_star	624.8	243.8	179	7	15.1	8.2
15	589329	AT23x8-12	3_star	586.7	188	127	7	15.1	6
16	589330	AT23X10-12	3_star	584.2	228.6	166	7	15.1	8
12	589332	AT24x8-11	3_star	614.7	218.4	145	7	15.1	8
23	589336	AT26x10-12	2_star	652.8	248.9	175	5	15.1	9
18	589337	AT24x8-12	3_star	614.7	203.2	141	7	15.1	7
19	589342	AT24x9-12	2_star	604.5	226.1	120	5	15.1	8
12	589344	AT24x11-12	3_star	609.6	276.9	195	7	15.1	9.2
22	589359	25x8.00-12NHS	4	635	203.2	356	22	15.1	7
11	6P0818	24x9.00-12 NHS	4	617.2	215.9	256	12	15.1	7.6
8	5893A9	AT24x9-11	3_star	610.1	227.1	166	7	15.1	7.8
10	6P0819	24x8.00-12	4	609.6	190.5	229	12	15.1	6.4
2	5893H5	22x11.00-10NHS	4	579.1	259.1	272	12	15.1	7.3
3	5893M0	AT23x7-10	2_star	584.2	177.8	109	5	15.1	5.3
2	5893V0	AT22x11-10	2_star	559.1	280.9	150	5	15.1	8
2	5370461	AT22x10-10	3_star	551.4	250.4	161	7	15.1	9
26	560414	25x11.00-12NHS	4	647.7	266.7	476	22	15.1	10
24	560416	25x10.00-12NHS	4	655.3	231.1	456	24	15.1	9
20	6P07681	25x8.00-12 NHS	4	642.6	195.6	225	10	15.1	7
21	6P07691	25x10.00-12 NHS	4	642.6	238.8	272	10	15.1	9
22	6P07701	25x11.00-12 NHS	4	645.2	266.7	476	22	15.1	10
14	589306	25x8.00-12NHS	4	637.5	190.5	225	10	15.1	6.4
15	589335	25x10.00-12NHS	4	642.6	228.6	272	10	15.1	7.7
16	589351	25x11.00-12NHS	4	645.2	266.7	476	22	15.1	9.1

Footnotes:

NHS tires are Non-Highway Service Tires. “AT” tires are designed for ATV applications. “NHS” tires are designed for Utility Vehicle applications. † Indicates mounted diameter and mounted width

*NOTE: “AT” tires are STAR Rated. “NHS” tires are Ply Rated. (PR).
